A fanless laptop doesn’t always appear radically different from a conventional fanned PC, usually small shape element fanned PCs. The fact remains that there are numerous diffused matters that prevent those quiet, unassuming components from burning up. How does a fanless PC stay cool?
As a rule, fanless computers are cooled primarily by conduction – that is, by transferring warmth into their surroundings via physical contact. It is a natural phenomenon that heat moves, but the amount of heat that is dissipated can be greatly influenced by design.
The idea is to place warmth-producing components, like the laptop’s CPU, in contact with a heat sink. The warmness sink allows the warmth created by the additives to pass through it and into the surrounding air. Whenever making a warmth sink assembly, it is important to keep in mind what materials you will use and how all its components will interface with one another. Watch our Tech Edge video about how fanless cooling works below, and explore directly to learn more.
A fanless PC stays cool with heat sinks
The heat sink
A fanless PC can live cool with heat sinks. What is the best material for a heat sink? As a consequence, a warmth sink must be created from a warmth conductor. Similar to how an electrical conductor acts as a conduit through which current can flow, a warmth conductor acts as a cloth that allows warmth to flow freely. When something hot (which includes a CPU) is in touch with one end of a warmness conductor and something cold (which includes the air outside the PC) is in contact with the other end, warmness will move swiftly away from the warmth source by way of the conductor. Copper and aluminum are the most common conductors used for warmth sinks.
The majority of OnLogic warmness sink assemblies include two essential components: an aluminum block that sits on top of the CPU and the case lid. The heat from the CPU is transferred to the aluminum block, then to the lid, and eventually to the surrounding air. The system must be efficiently cooled by powerful warmth engaging in interfaces among all of those components.
Creating an effective, heat-conducting interface
Creating a powerful interface for warmth switch is done differently on the outside and inside of a PC. At the inside of the PC, it’s very important to remove as much air as possible between the CPU and heat sink. Simply mounting the heat sink at the CPU isn’t always enough because microscopic imperfections leave a pocket of air at the interface point. There is no uncommon way of having round that includes thermal paste, which is a better conductor than air. Thermal paste fills in all the gaps that would otherwise be filled with air.

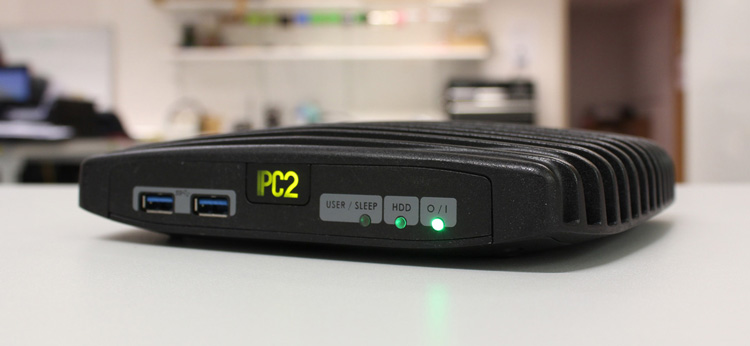

Logic Supply ML300 LidOn the outside of the PC, heat is emitted immediately into the air, thus a unique method of cooling is required. A typical layout is a lid covered in specially engineered ridges. In addition, these ridges extend the area of the floor exposed to the air, efficiently increasing the passages through which heat can escape. On occasion, even the ridges have ridges growing along the floor area.
Fanless cooling pitfalls to avoid
By following these standards, you’ll avoid numerous pitfalls when assembling or enforcing a fanless PC. Despite the fact that warmth paste is a better conductor than air, it’s still miles behind copper or aluminum. This method should be used simplest sufficient to fill in the gaps wherein it’s needed. Any higher and you are creating a thermal barrier that will cause your laptop to overheat. Another frequent issue to keep away from is putting something on the top of a fanless computer. The smallest piece of paper can entice a pocket of warm air underneath the lid of the PC, preventing it from cooling. Do not forget the air surrounding the PC as well. If the surrounding air is not able to circulate (as it might be in a restricted space) or too thin (as it might be at higher elevations), it will have much less ability to retain warmness away from the PC.
OnLogic works with fanless computers every day. You realize just how a lot goes into keeping them running at top temperatures the extra you’re exposed to them.
